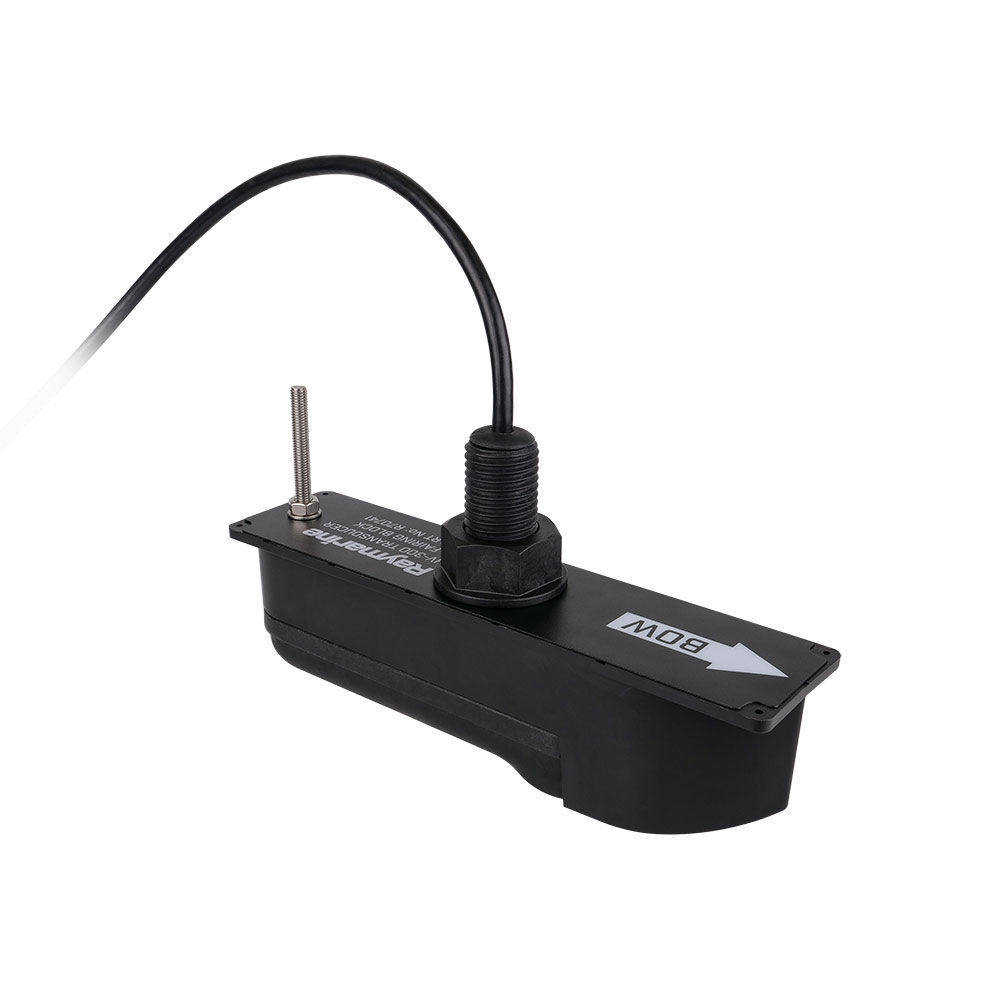

The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you'll ever need.
1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.
General Specifications
Material: Plastic
Max Depth: 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900
Frequency: 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP
Beam Width: 3D: 180° / Down: 60° / Conical: 25°
Records: Depth / Temperature
Hull Material: Fiberglass / Metal
Cable Length: 19 Ft. / 6 M.
HyperVision
350 kHz (Standard) range: RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
1.2 MHz (Hyper) range: RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
Sonar channels: Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
200 kHz range: Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
Frequencies: 1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP
Power: 1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W
Physical
Overall dimensions (including fairing): Length: 267.01 mm (10.51 in), Height: 170.36 mm (6.71 in) including cable bend radius, Width: 63.60 mm (2.50 in)

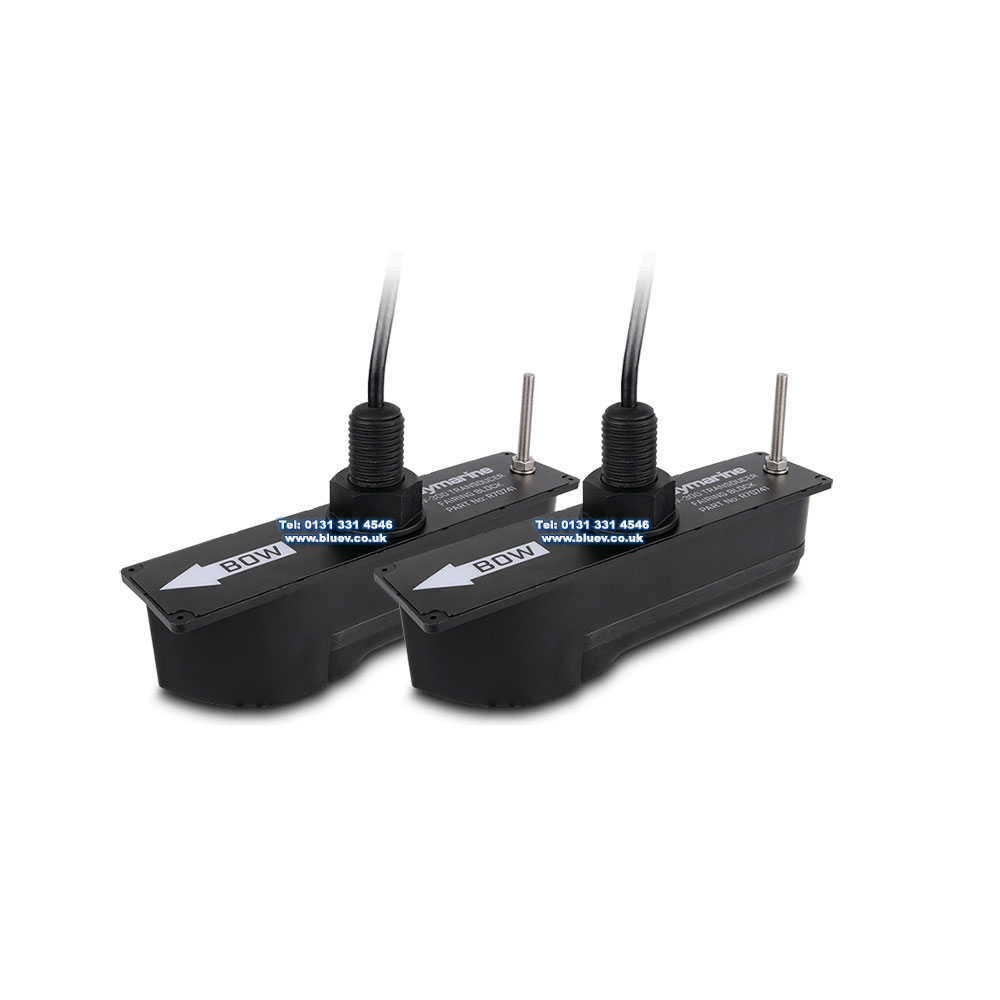

Cable length: HV-300TH: 6 m (19.69 ft) fitted cable, HV-300THP-P / HV-300THP-S 2 m (6.5 ft)
Weight (unboxed): 1.52 kg (3.35 lb) Maximum
