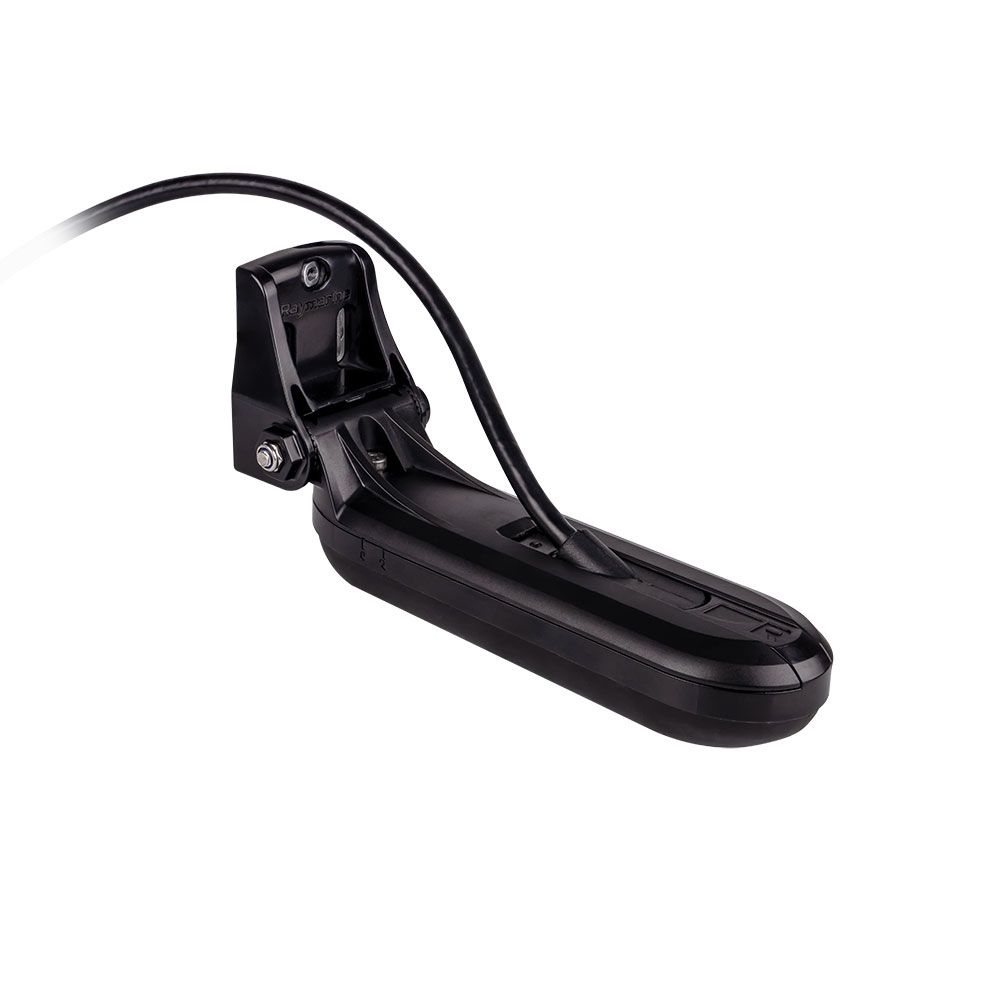

Raymarine HV-100 Plastic Transom Transducer with 6m cable E70643
The Raymarine HV-100 HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP.
1.2MHz HyperVision DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging.
Raymarine HV-100 E70643 Specifications
| General Specifications |
|---|
| Material | Plastic |
| Max Depth | 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900 |
| Frequency | 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP |
| Beam Width | 3D: 180° / Down: 60° / Conical: 25° |
| Records | Depth / Temperature |
| Hull Material | Fiberglass / Metal |
| Cable Length | 19 Ft. / 6 M. |
| HyperVision |
|---|
| 350 kHz (Standard) range | RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft) |
| 1.2 MHz (Hyper) range | RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft) |
| Sonar channels | Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard) |
| 200 kHz range | Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft) |
| Frequencies | 1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP |
| Power | 1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W |
| Physical |
|---|
| Dimensions | Length: 224.99 mm (8.86 in), Height: 112.69 mm (4.44 in), Width: 76.00 mm (2.99 in) |
| Cable length | HV-100: 6 m (19.69 ft) fitted cable |
| Weight (unboxed) | 1.05 kg (2.31 lb) |
| Environmental |
|---|
| Waterproof rating | IPx6 (surfaces exterior to hull only), IPx7, IPx8 |
| Storage temperature range | 20° C (23° F) to + 70° C (158° F) |
| Operating temperature range | -2° C (28.4° F) to + 55° C (131° F) |
| Conformance |
|---|
| Standards | EN 60945:2002, IEC 28846:1993, EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
