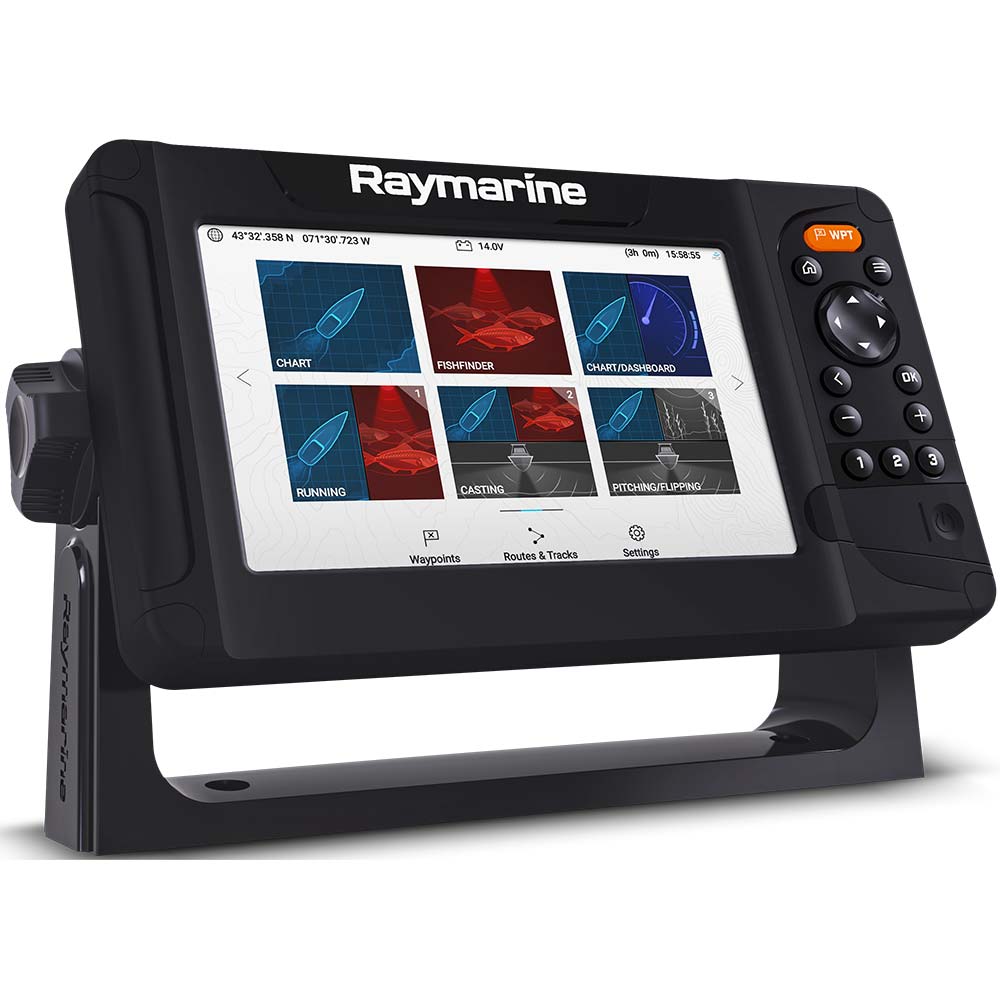

Raymarine Element 7 HV E70532

Raymarine Element 7 HV E70532

This product does not come with a chart, the chart picture shows coverage of the optional chart listed.

The Raymarine Element CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Raymarine Element’s HyperVision 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Raymarine Element HV Features

Bright and Rugged - Sunlight viewable displays with integrated GPS/GNSS receiver.

• Superior HyperVision - 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.
• RealVision 3D Built-In - Accurately identify the location of ledges, channel beds, and other contour changes.
• Fast Quad-Core Processor - For instantaneous chart re-draw and sharp 3D imaging.
• All-in-one Transducer - Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

SMART MAPPING

The Raymarine Element HV supports Raymarine LightHouse Charts with Fishing Hot Spots and Navionics charts.

MAKE YOUR OWN MAPS

Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support.

SIMPLE LIGHTHOUSE SPORT OPERATING SYSTEM

Optimized for fishing, the LightHouse Sport OS on the Raymarine Element HV is fast and easy-to-learn.

INTUITIVE CONTROLS

An oversized waypoint key for marking your favorite spots and three user-programmable keys.

Turn Up the Resolution with HyperVision on the Raymarine Element HV

HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D.

1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters).

Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters).

Raymarine Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft.

Raymarine Element HV Specifications

Physical
Dimensions (Trunnion mount)
Element 7 HV E70532 : Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)
Element 9 HV E70534: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)
Element 12 HV E70536: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)

Dimensions (surface mount)
Element 7 HV E70532: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)
Element 9 HV E70534: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)
Element 12 HV E70536: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)

Weight (display only)
Element 7 HV E70532: 1.0 Kg (2.2lbs)
Element 9 HV E70534: 1.3 Kg (2.86lbs)
Element 12 HV E70536: 2.0 Kg (4.4lbs)

LCD
Size (diagonal):
Element 7 HV E70532: 7.0"
Element 9 HV E70534: 9.0"
Element 12 HV E70536: 12.1"

Resolution
Element 7 HV E70532: WVGA 800 x 480
Element 9 HV E70534: WVGA 800 x 480
Element 12 HV E70536: WXGA 1280 x 800

Ratio
Element 7 HV E70532: 5:3
Element 9 HV E70534: 5:3
Element 12 HV E70536: 8:5

Viewing angle (T / B / L / R)
Element 7 HV E70532: 50° / 60° / 70° / 70°
Element 9 HV E70534: 50° / 70° / 70° / 70°
Element 12 HV E70536: 89° / 89° / 89° / 89°

Type
Element 7 HV E70532: TN (Twisted Nematic)
Element 9 HV E70534: TN (Twisted Nematic)
Element 12 HV E70536: IPS (In-Plane Switching)
Color depth: 24-bit
Maximum Illumination: 1500 nits / 1500 cd/m2

Power
Operating voltage range: 8 V dc to 16 V dc (protected up to 32 V dc)
Power consumption (Approximate @ 12 V dc)
Element 7 HV E70532: 15 Watts
Element 9 HV E70534: 20 Watts
Element 12 HV E70536: 25 Watts
Nominal supply voltage: 12 V dc
Fuse requirements: Inline fuse = 5 A, Thermal breaker = 3 A
LEN (NMEA 2000 Load Equivalency Number): 1 (Based on 9 V dc nominal voltage)

Data connections
SeaTalkng / NMEA 2000: 1 x DeviceNet female connector built into power cable
2.4 GHz Wi-Fi: 1 x 802.11/b/g/n
Transducer: 1 x 15-pin HyperVision connector

Hypervision
350 kHz (Standard) range: RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
1.2 MHz (Hyper) range: RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
Sonar channels: Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
200 kHz range: Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
Frequencies: 1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP
Power : 1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W

Storage
External: 1 x MicroSDXC card slot

Environmental
Operating temperature range: -25°C (-13°F) to +55°C (+131°F)
Storage temperature range: -30°C (-22°F) to +70°C (+158°F)
Humidity: up to 93% @ 40°C (+104°F)
Waterproof rating: IPx6, IPx7

GPS Receiver
Position Accuracy: Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum: WGS-84 (alternatives can be selected on the MFD)
Channels: Multiple - ability to simultaneously track up to 28 satellites
Antenna: Internal - Ceramic chip mounted near top of unit
GNSS compatibility: GPS, GLONASS, Beidou
SBAS compatibility: EGNOS, GAGAN, MSAS, QZSS, WAAS
Signal Acquisition: Automatic
Almanac Update: Automatic
Receiver IC Sensitivity: 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency: 1574 MHz to 1605 MHz
