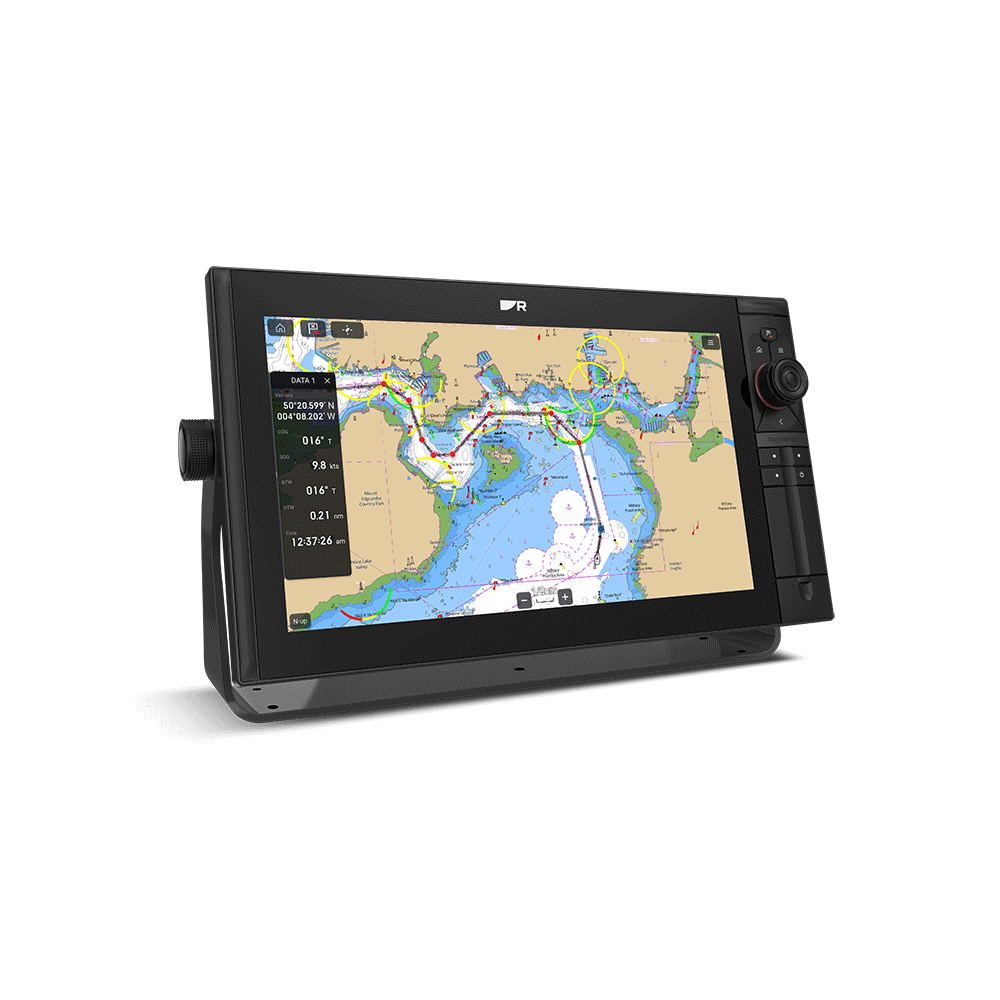

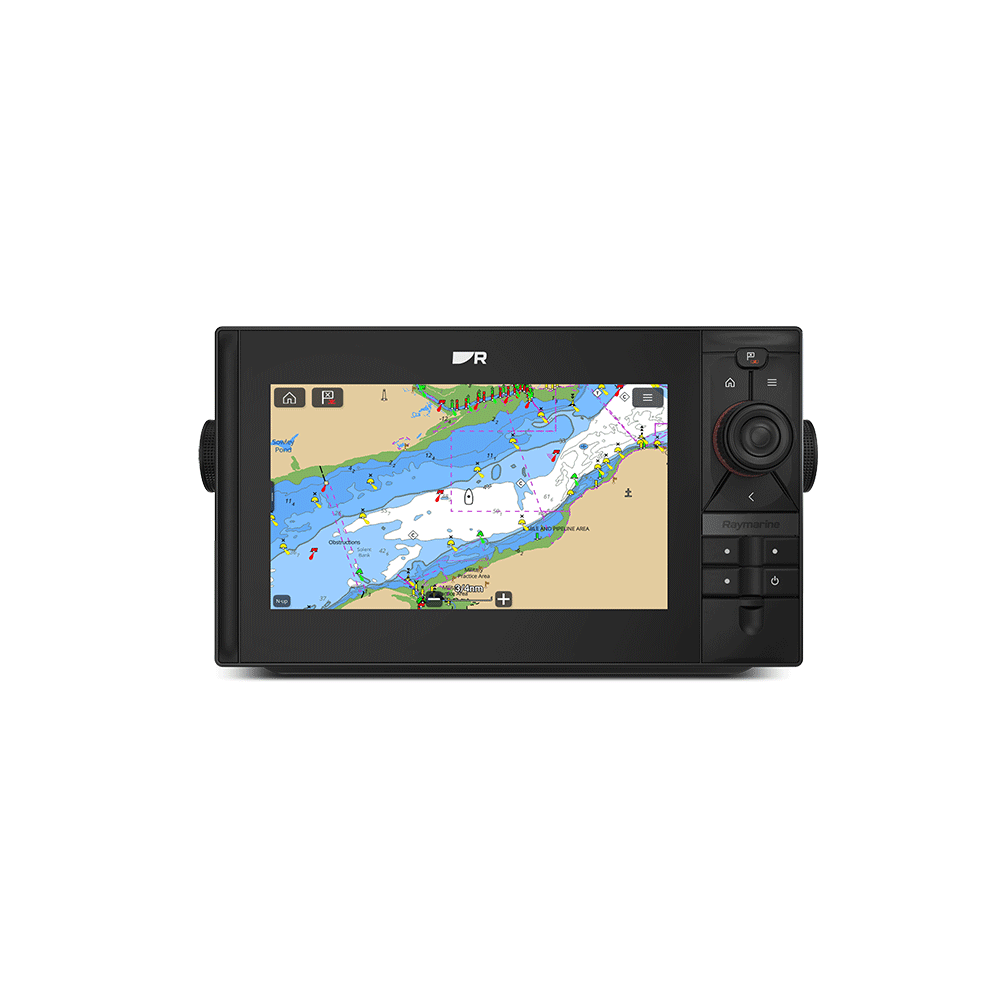

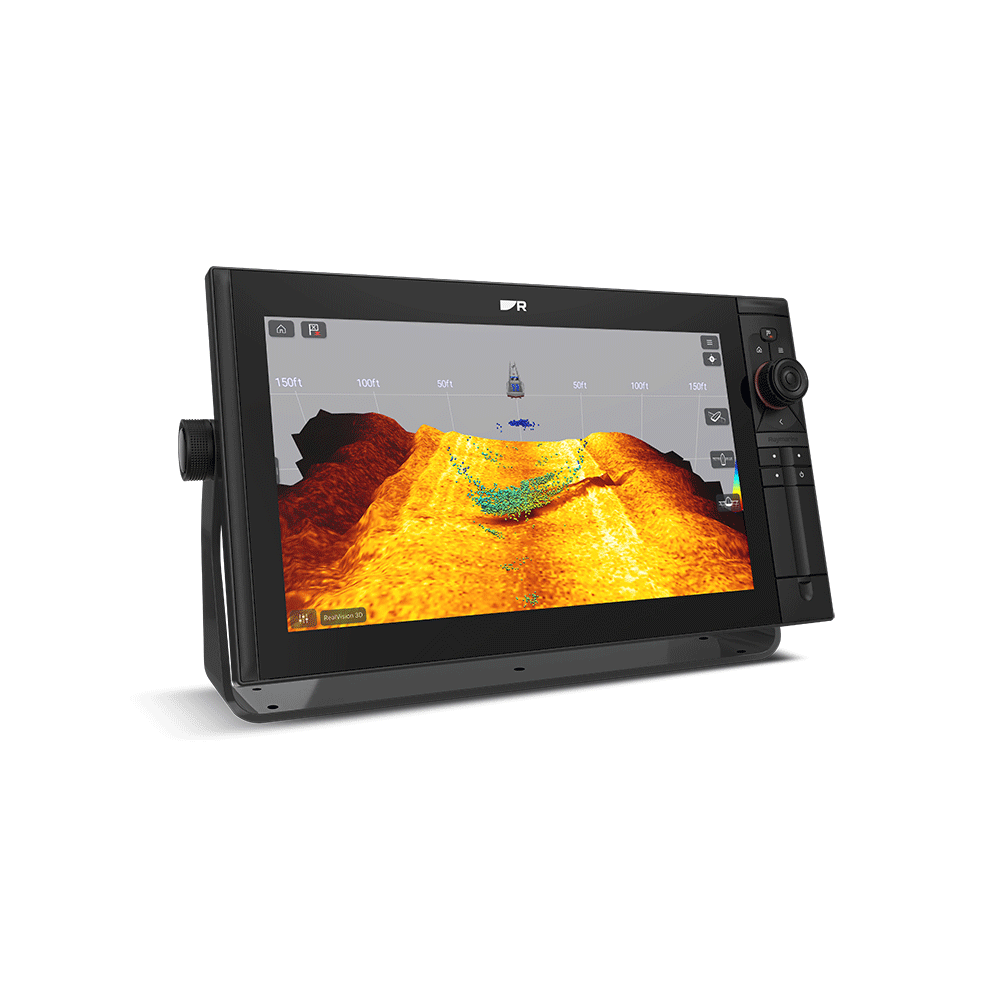

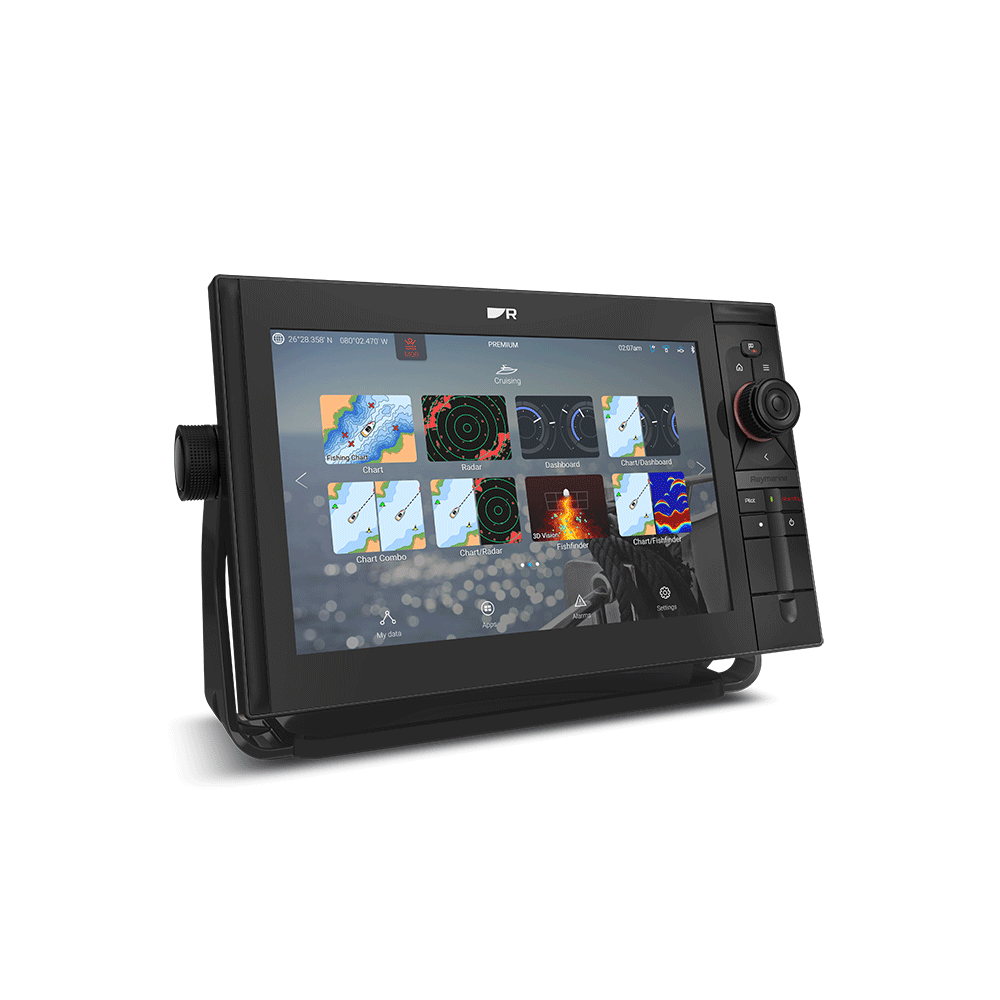

Raymarine Axiom2 Pro 16 S E70657
This product does not come with a chart, the chart pictures show coverage of the optional charts listed.
The Raymarine Axiom2 Pro S line of networked chartplotter displays offers premium all-in-one performance with blazing fast quad-core processing and the simplicity of the LightHouse operating system.
Optically bonded IPS displays bring charts, radar, and navigation data to life in all lighting conditions, while Raymarine HybridTouch offers the ease of touch screen and the confidence of keypad control when seas are rough. Built-in high CHIRP sonar provides reliable depth and bottom imaging for worry-free cruising.
Expand Raymarine Axiom2 Pro S into a multifunction powerhouse with additional Raymarine Axiom displays, Evolution autopilot, solid state radar, and FLIR thermal night vision cameras.
Axiom Pro S Key Features
- Powerful Chartplotting - Navigate, pan, and zoom effortlessly through LightHouse and Navionics with Raymarine Axiom2 Pro S fast quad-core processor.
- Cruise and Sail Smarter - With dynamic laylines overlays, polar performance data, and graphical sailing dashboard displays.
- Trusted by the Pros - Raymarine Axiom2 Pro S displays incorporate the same chartplotting, AIS, and radar technologies trusted by the United States Coast Guard.
- ClearCruise Augmented Reality - Upgrade to ClearCruise AR and make smarter navigation decisions with AIS targets and chart objects overlaid on high-definition video.
- Advanced Radar Navigation - Raymarine Axiom2 Pro S is compatible with Raymarine's Cyclone and Quantum solid-state radars for all-weather collision avoidance and radar/chart overlay.
- Easy to Expand - Standard NMEA0183 and NMEA2000 ports and two RayNet Ethernet ports for additional displays, radars, FLIR, and video monitoring cameras.
Axiom Pro Intuitive Control
- LightHouse OS - Designed for the way boaters think, the fast and fluid Lighthouse operating system interface is uncluttered and easy to customize for your style of boating.
- HybridTouch - Enjoy effortless touch screen control for route and waypoint planning and take command with full keypad control when seas are rough
- Custom Key - Program the Custom key for instant access to your favorite function
Raymarine Axiom2 Pro S Specifications
| Physical |
|---|
| Dimensions (Trunnion mounted) | Axiom Pro 9: Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) Axiom Pro 12: Height: 246.13 mm (9.69 in), Width: 388.5 mm (15.3 in), Depth (including cables): 233.4 mm (9.18 in) |
| Dimensions (Surface/Flush mounted) | Axiom Pro 9: Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) Axiom Pro 12: Height: 222.8 mm (8.77 in), Width: 358.03 mm (14.1 in), Depth (including cables): 233.4 mm (9.18 in) Axiom Pro 16: Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth (including cables): 240.4 mm (9.46 in) |
| Accessory connection | USB Micro B |
| Ethernet connection | 2 RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 0183 connection | Port 1: Input and output 4,800 or 38,400 baud rate, Port 2: Input only 4,800 or 38,400 baud rate |
| External storage | 2 front mounted MicroSDXC card slots |
| NMEA 2000 connection | DeviceNet connector |
| Analog video connections | BNC Analog video input (on power cable) |
| Wireless connections | Bluetooth: V4.0 Wi-Fi: 802.11/b/g/n |
| Internal storage | 16GB Solid State |
| Transducer connection | 25 pin RealVision type connector (requires adaptor cable) |
| LCD |
|---|
| Size (diagonal) | Axiom Pro 9: 9.0" Axiom Pro 12: 12.1" Axiom Pro 16: 15.6" |
| Ratio | Axiom Pro 9: 16:9 Axiom Pro 12: 16:9 Axiom Pro 16: 16:10 |
| Resolution | Axiom 2 Pro 9: 1280 x 720 HD Axiom 2 Pro 12: 1280 x 800 WXGA Axiom 2 Pro 16: 1920 x 1080 FHD |
| Viewing angle | Top 88° / Bottom 88° / Left 88° / Right 88° |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Illumination | Axiom 2 Pro 9 1300 nits / 1300 cd/m2
Axiom 2 Pro 12 1200 nits / 1200 cd/m2
Axiom 2 Pro 16 1200 nits / 1200 cd/m2 |
| Number of simultaneous touches | 1 to 16 |
| Power |
|---|
| Power consumption @ 12 V dc | Axiom Pro 9: 24.96 W Axiom Pro 12: 21.12 W Axiom Pro 16: 31.44 W |
| Power consumption @ 24 V dc | Axiom Pro 9: 25.2 W Axiom Pro 12: 22.56 W Axiom Pro 16: 31.68 W |
| Operating voltage range | 8 V dc to 32 V dc |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Off current @ 12 V dc | 11 mA (0.13 W) |
| Off current @ 24 V dc | 18 mA (0.43 W) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Current | 5 A |
| Sonar |
|---|
| Channels | CHIRP conical sonar |
| Depth range | 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions |
| Transducer connection | 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
| Environmental |
|---|
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| GNSS (GPS) |
|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, Galileo, GLONASS, Beidou |
| Almanac Update | Automatic |
| Signal Acquisition | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Refresh rate | 10 Hz (10 times per second) |
| Time to first fix from cold start | < 2 minutes |
