Raymarine Axiom+ 9 RV E70637
This product does not come with a chart or transducer, pictures show these optional extras.

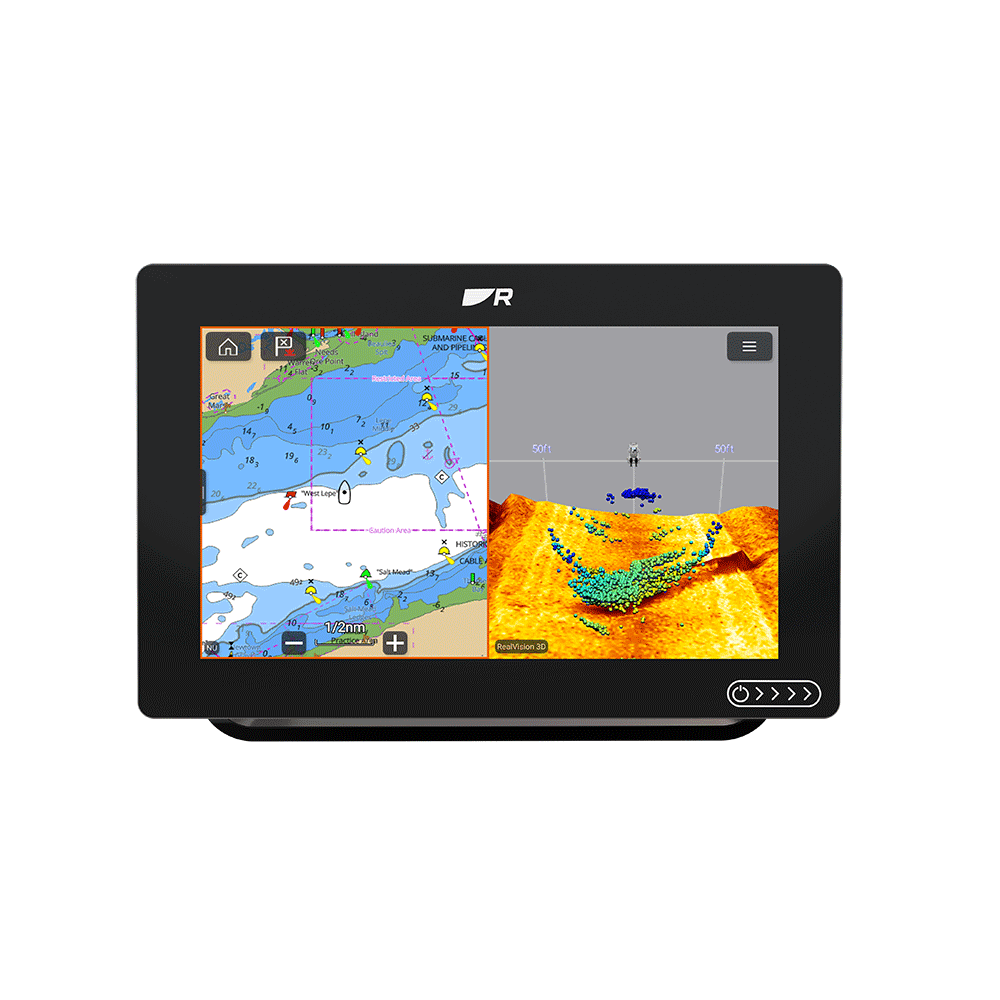

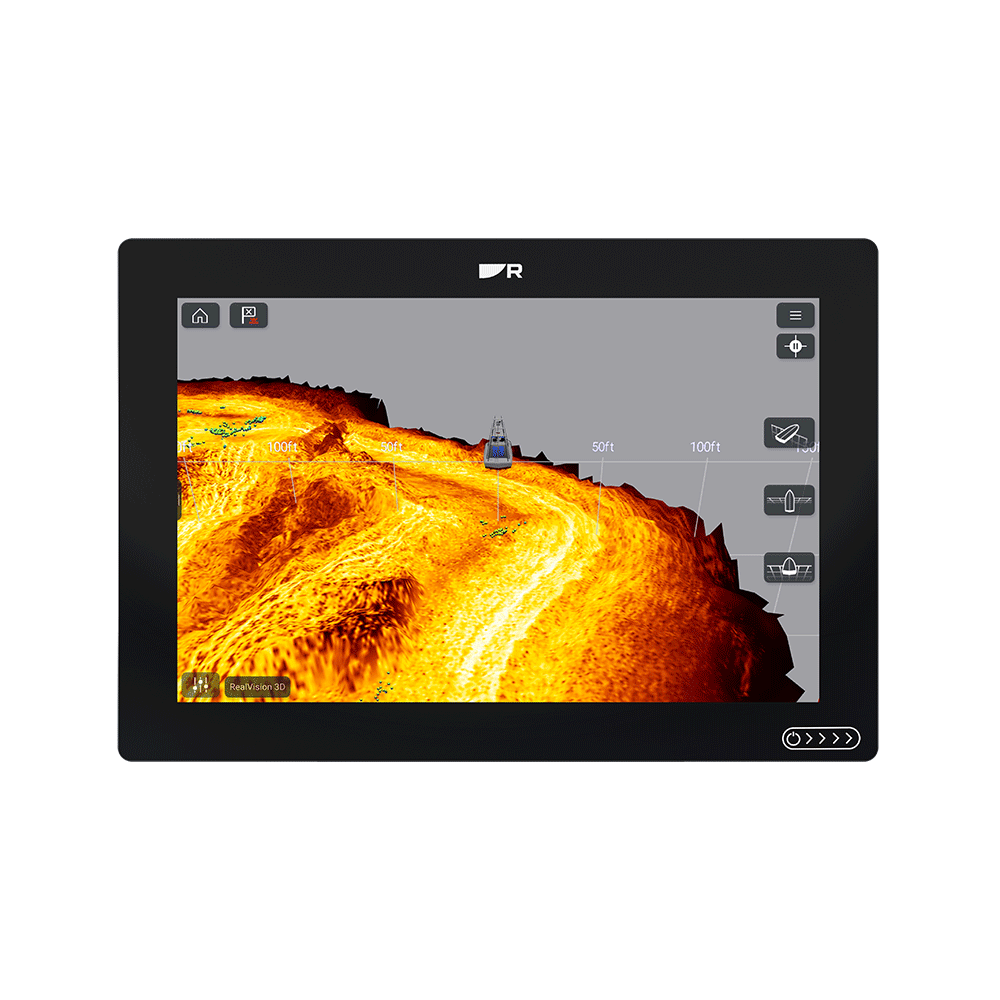

Raymarine Axiom+ RV is a new generation of Raymarine Axiom chartplotters with RealVisionTM 3D CHIRP sonar technology. Upgraded with 25 percent brighter displays, Raymarine Axiom+ RV displays will up your fishfinding game.
A quad-core processor delivers responsive performance and gives you the power to expand Raymarine Axiom+ RV with solid state radar and FLIR thermal cameras or add a marine camera and navigate with ClearCruise Augmented Reality.
Raymarine Axiom+ RV puts you in command with its advanced LightHouse operating system, making it easy to navigate and find fish with Raymarine Axiom+ RV's CHIRP SideVision, DownVision, conventional CHIRP, and RealVision 3D sonar channels.
RealVision 3D Sonar
- High Frequency CHIRP sonar for targeting fish and determining bottom density
- CHIRP DownVision sonar for high definition views of structure, fish habitat and man-made objects
- CHIRP SideVision for scanning beyond casting distance to see fish, structure and submerged objects out to the sides of the boat
- RealVision 3D Sonar which provides a gyro-stabilized, GPS-locked bathymetric model of the bottom and water column
- Built-In 600W Digital Sonar at 50 kHz and 200 kHz. Add an optional adapter cable and AIRMAR transducer to your Axiom+ RV system and fish to even deeper depths with increased power and lower frequencies.
Maximum Visibility
- Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.
- Improved viewing with new LightHouse color themes, including Day, Dusk and Night mode.
- 25 percent brighter (up to 1,800 nits)
Performance Tuned
- Fast and fluid chart redraw of LightHouse, Navionics and C-MAP electronics charts.
- Powerful quad-core processor, plus increased onboard storage for personal data and apps.

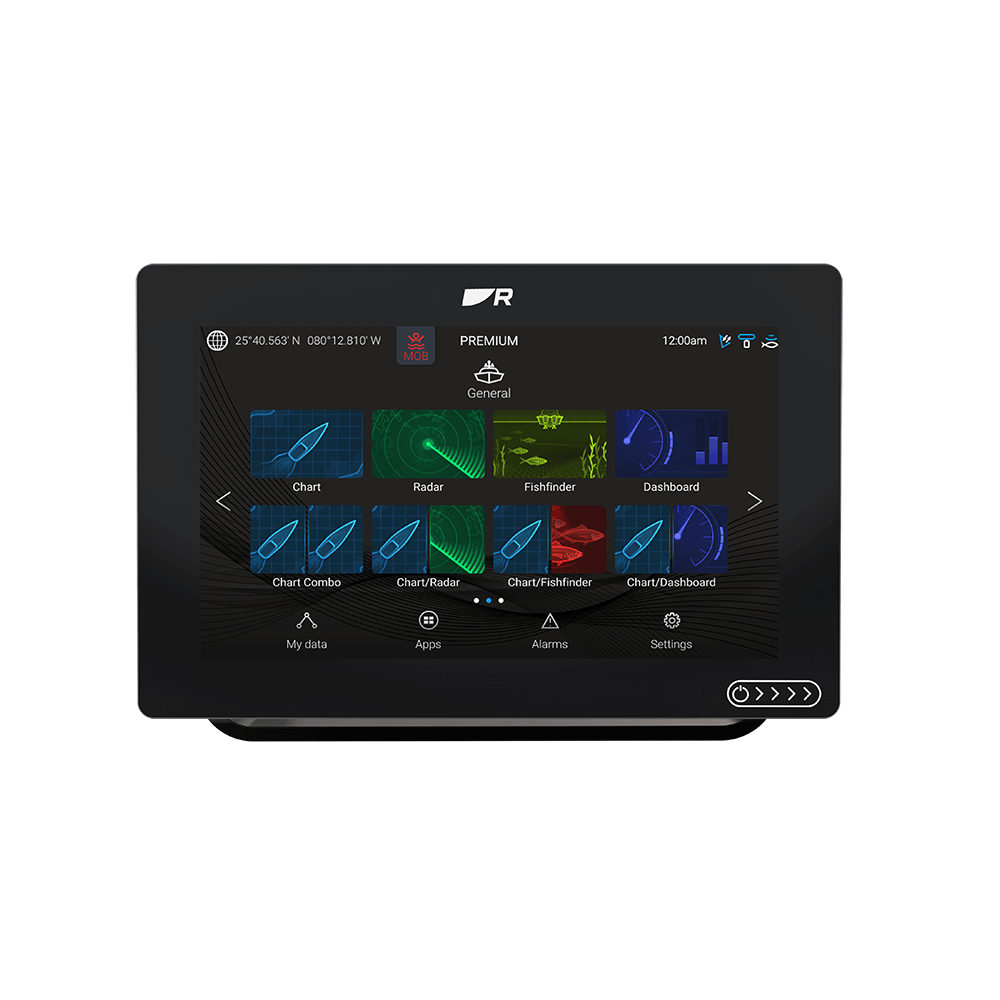

- Smart and intuitive LightHouse OS makes navigating easy.
- Ready to Expand - Network with multiple displays, radars, engines, marine cameras, and more.
HydroTough
- Axiom+ features HydroTough nano-coated, impact-resistant screens that dispels water, oil, and smudges.
- All-weather HydroTough technology delivers improved color and contrast and accurate touch controls - even when wet.
Raymarine Axiom+ RV Specifications
| Physical |
|---|
| Dimensions (Trunnion mounted) | Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in) |
| Dimensions (Surface/Flush mounted) | Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in) Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in) Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in) |
| Accessory connection | USB Micro B |
| Ethernet connection | RayNet (10/100 Mbits/s) |
| External storage | MicroSDXC card slot x 1 |
| NMEA 2000 connection | DeviceNet (male connector built into power cable) |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
| Internal storage | 16 GB Solid State (14 GB usable) |
| Transducer connection | 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers |
| LCD |
|---|
| Size (diagonal) | Axiom+ 7: 7" Axiom+ 9: 9" Axiom+ 12: 12" |
| Resolution | Axiom+ 7: WSVGA 1024 x 600 Axiom+ 9: Widescreen HD 1280 x 720 Axiom+ 12: WXGA 1280 x 800 |
| Viewing angle | Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85° Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88° |
| Illumination | Axiom+ 7: 1800 nits / 1800 cd/m2 Axiom+ 9:1500 nits / 1500 cd/m2 Axiom+ 12: 1800 nits / 1800 cd/m2 |
| Protective coating | HydroToughTM Oleophobic |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Number of simultaneous touches | 2 |
| Power |
|---|
| Power consumption | Axiom+ 7: 9.84 W Axiom+ 9: 11.98 W Axiom+ 12: 18.96 W |
| Operating voltage range | 8 V dc to 16 V dc |
| Fuse rating | 7 A |
| Nominal supply voltage | 12 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Sonar |
|---|
| Depth range | CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft) |
| Environmental |
|---|
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | Up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 |
| GPS |
|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Satellite Differential Type (SBAS) | WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Track up to 28 satellites simultaneously |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| Almanac Update | Automatic |
| Signal Acquisition | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Refresh rate | 10 Hz (10 times per second) |
| Time to first fix from cold start | < 2 minutes |
