Icom M510 EVO with AIS Receive

Icom M510 EVO with AIS Receive

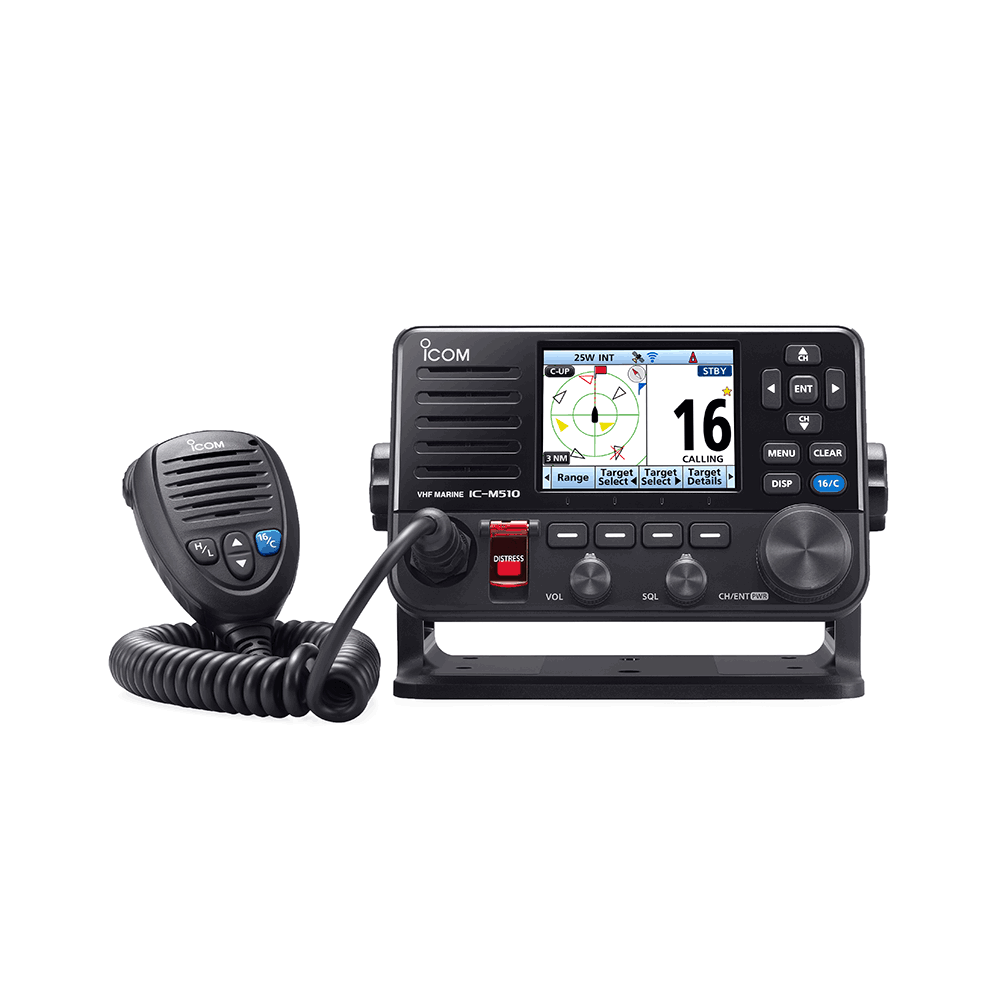

Introducing the Icom M510 EVO, the latest evolution of our renowned and award-winning Icom M510 EVO Marine fixed-mount VHF. This new model offers a self-contained single-model solution with numerous advanced features including radio control & intercom via your smartphone, built-in NMEA 2000 support, a powerful 25W loud two-way hailer (PA), fog horn function, and much more. With these enhancements, the Icom M510 EVO stands out as a stylish and technologically advanced fixed mount VHF, leading the way in marine communication technology.

Radio Control & Intercom via Your Smartphone
Use the RS-M500 app app (for iOS/Android) to remotely control the Icom M510 EVO through WLAN. Up to three smart devices can be used as a wireless microphone or remote controller as a substitute for the supplied microphone or optional CommandMic. You can make calls while working inside the vessel or checking the surroundings on deck. An intercom function between your smart device and the radio is also built in.

Award Winning Sleek Design (iF Design Award Winner)
The Icom M510E series is a winner in the world-renowned iF DESIGN AWARD 2022. The radio can be installed in either panel or trunnion mounting and has a sleek design that looks great on a boat's black glass cockpit dashboard.

Integrated AIS Receiver*
With its integrated AIS receiver*1 or external NMEA sentence*2, the Icom M510 EVO can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen, even if the vessel is too far away to see the vessel’s name.

*1 AIS receiver may not be included depending on the transceiver version. *2 Optional MA-510TR or third-party AIS receiver/transponder

Built-in NMEA 2000
The NMEA 2000 network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display.) The radio can send GNSS (GPS) position, AIS*1, DSC call, and radio channel data to other equipment.

Loud 25 W Two-Way Hailer/20 W RX Hailer
When connected to the optional SP-37 speaker horn, you can talk with the crew on the deck or shore from the radio's microphone and hear any reply via the speaker horn. The RX hailer function enables you to keep watch of the radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker. In addition, the built-in waterproof speaker enhances the received audio and provides powerful, clear audio.

Built-in Class D DSC and Distress Button
With just a press of the “DISTRESS” button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.

Wide Viewing Angle Colour TFT LCD
The colour TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. Just hold down the DISP key to switch the Night mode screen which ensures good readability in low light conditions.

Icom M510 EVO Other Features

• Simplified Navigation function
• Combined with the MA-510TR Class B AIS transponder supports safer navigation
• Active Noise Cancelling – no need to shout into your microphone
• Integrated GNSS receiver (selectable from either internal GPS antenna or use optional UX-241 GNSS antenna)
• IP68 advanced waterproofing (1m depth of water for 60 minutes)
• Voice Scrambler with optional UT-112A
• AquaQuake draining function
• Supplied HM-205RB speaker-microphone can be connected to either the front or rear panel to meet to the user’s requirement
• External speaker connection
• Optional HM-195 CommandMic is available.
• Supports 4-digit channels
• Supplied waterproof flush mount gasket for trunnion mount

Icom M510 EVO Specifications

• Radio Control & Intercom via Your Smartphone (RS-M500)
• Award Winning Sleek Design (iF Design Award Winner)
• Integrated AIS Receiver
• Built-in NMEA 2000
• Loud 25 W Two-Way Hailer/20 W RX Hailer
• Built-in Class D DSC and Distress Button
• Wide Viewing Angle Colour TFT LCD
• Simplified Navigation function
• Combined with the MA-510TR Class B AIS transponder supports safer navigation
• Active Noise Cancelling – no need to shout into your microphone
• Integrated GNSS receiver (selectable from either internal GPS antenna or use optional UX-241 GNSS antenna)
• IP68 advanced waterproofing (1m depth of water for 60 minutes)
• Voice Scrambler with optional UT-112A
• AquaQuake draining function
• Supplied HM-205RB speaker-microphone can be connected to either the front or rear panel to meet to the user’s requirement
• External speaker connection
• Optional HM-195 CommandMic is available.
• Supports 4-digit channels
• Supplied waterproof flush mount gasket for trunnion mount
