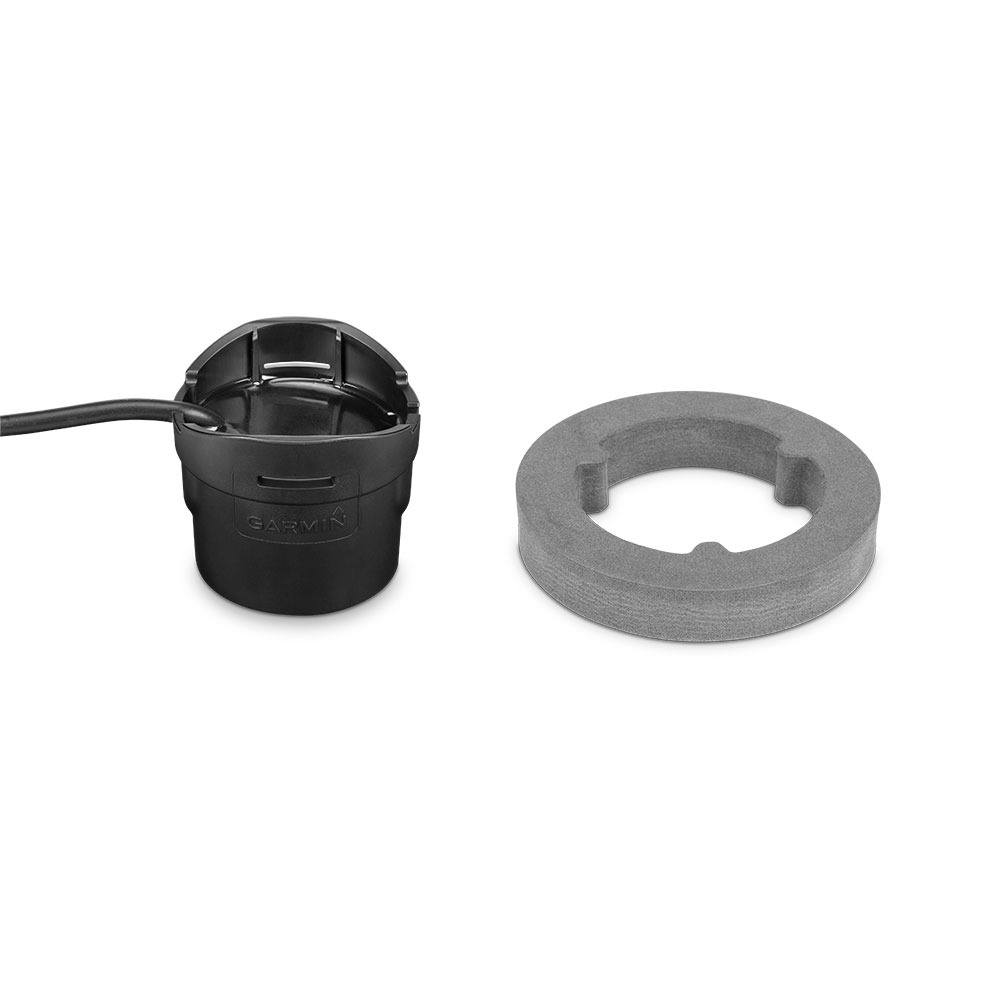

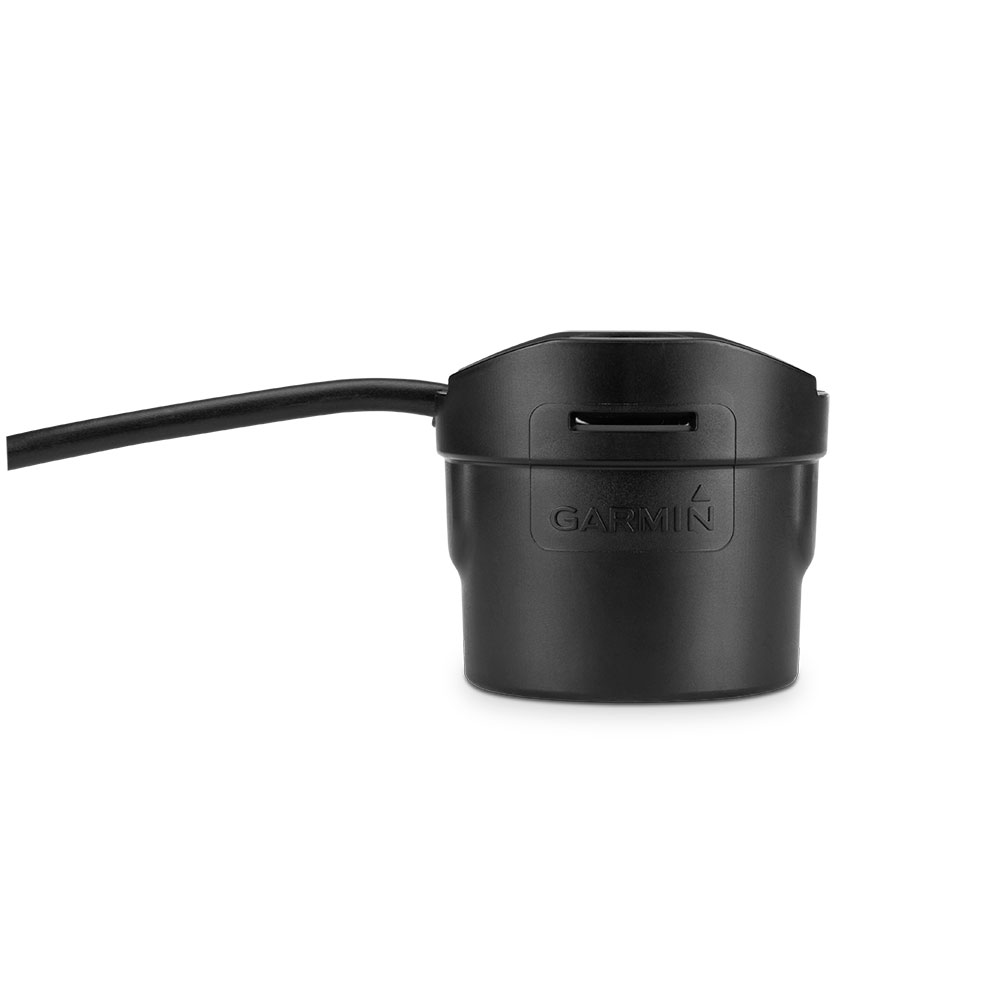

Garmin GT8HW-IH 010-12401-10
The Garmin GT8HW-IH transducer is ideal for bass boats that want to install the transducer inside a fiberglass hull and not on the transom where cavitation could cause issues. It requires a flat section (less than 6°) in the hull to be mounted and is excellent for boats travelling at high speeds that want to maintain accurate depth readings.The 8-pin transducer features high-wide CHIRP traditional sonar (145-230 kHz) and has a power rating of 250 W.
For installation, follow the included instructions carefully to avoid damaging your boat.
| General |
|---|
| Transducer frequency | CHIRP High Wide (145-230 kHz) |
| Transducer power | 250 W |
| Transducer beamwidth | 24°-16° |
| Transducer maximum depth | 800 ft. freshwater |
| Transducer cable length | 20 ft. |
| Transducer depth/speed/temperature | Depth |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0°- 6° deadrise |
