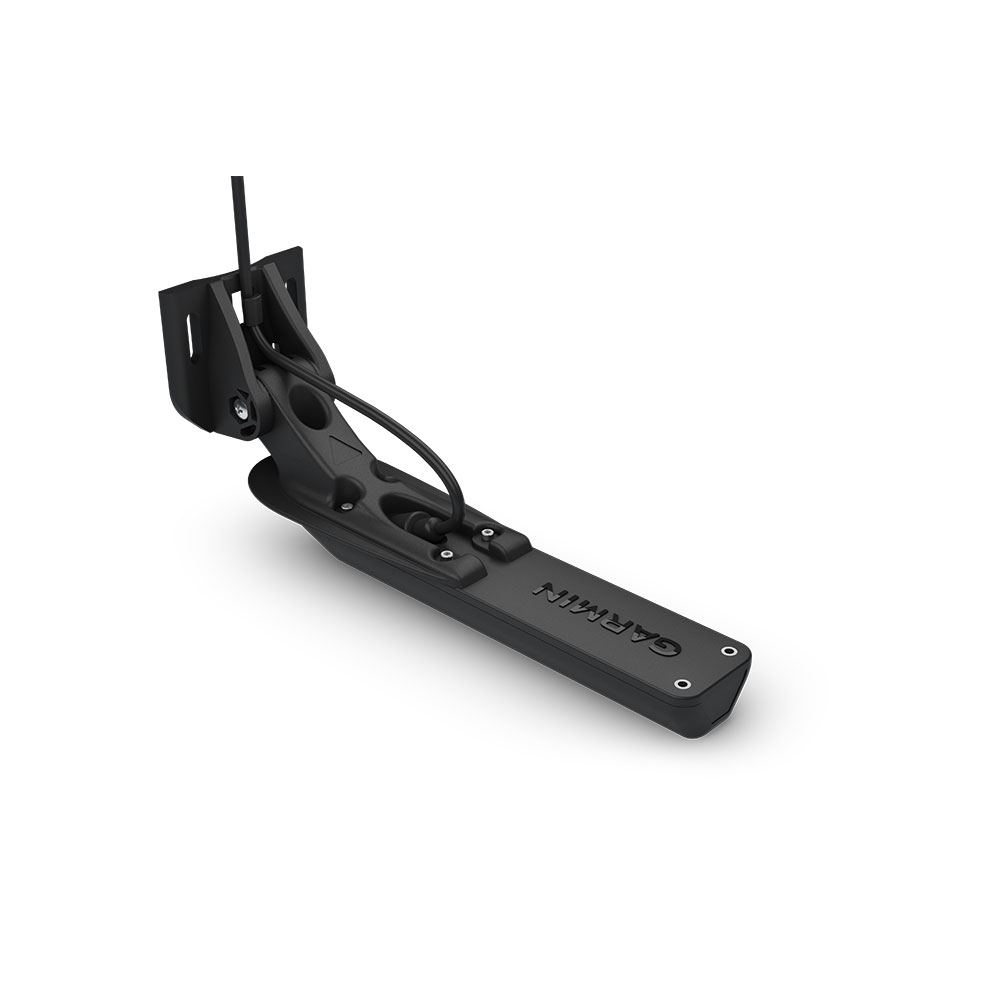

Garmin GT34UHD-TM 010-12776-00
Ultra High-Definition Sonar System Transom Mount Transducer
Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV 20 sonar module. It includes three arrays, including a downward-facing element (800 kHz UHD ClearVü, 1200 kHz UHD SideVü).
Ultra High-Definition ClearVü Scanning
This sonar system provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
Ultra High-Definition SideVü Scanning
See stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
General |
| Transducer frequency | Ultra High-Definition ClearVü: 800 kHz (760-880 kHz) Ultra High-Definition SideVü: 1,200 kHz (1,060-1,170 kHz) |
|---|
| Transducer power | 500 W |
|---|
| Transducer beamwidth | Ultra High-Definition ClearVü: 0.74° x 46°
Ultra High-Definition SideVü: 0.44° x 55° |
|---|
| Transducer maximum depth | Ultra High-Definition ClearVü: 200'
Ultra High-Definition SideVü: 125' sides, |
|---|
| Transducer cable length | 20 ft. |
|---|
| Transducer depth/speed/temperature | Depth and Temperature |
|---|
| Transducer number of pins | 12-pin |
|---|
| Transducer supported deadrise/transom angles | 0°-70° degree transom |
|---|
Sonar features & specifications |
| Ultra High-Definition ClearVü | 800 kHz |
|---|
| Ultra High-Definition SideVü | 1,200 kHz |
|---|
