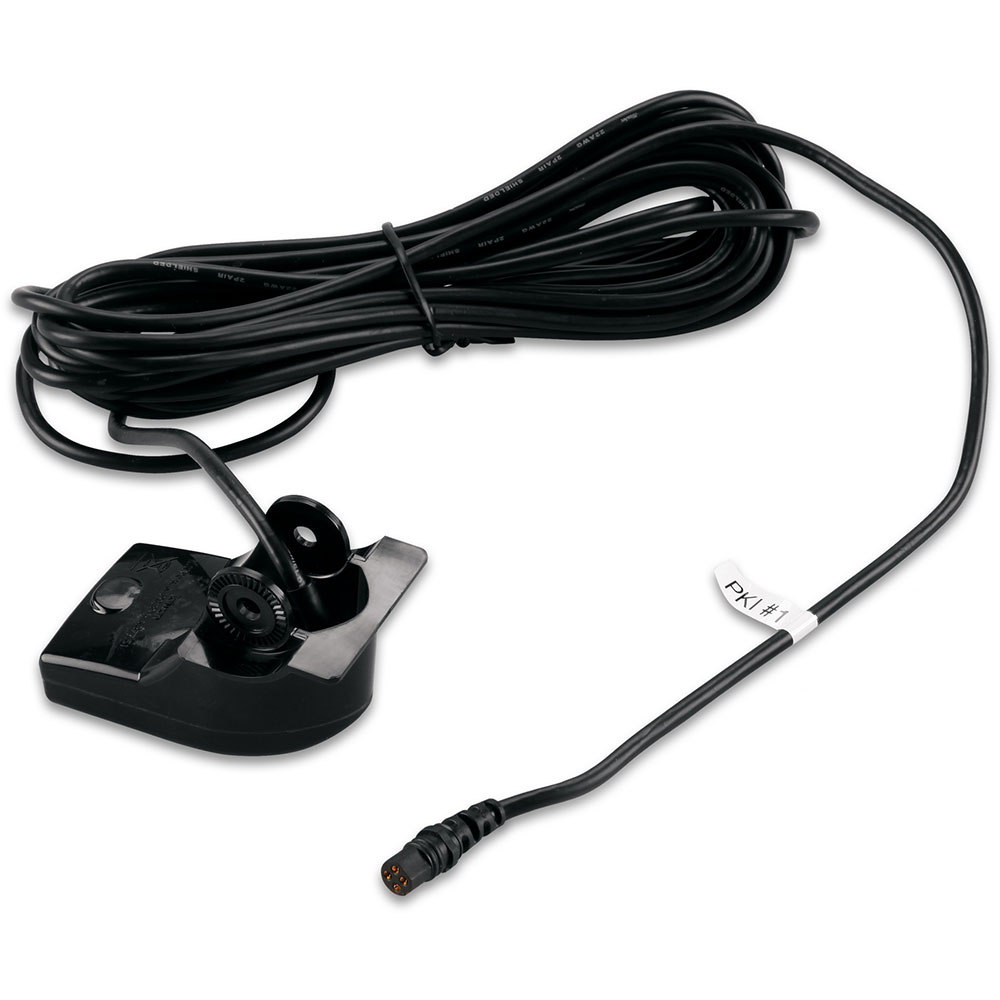

Garmin Dual Beam 8-pin 010-10249-40
This dual beam transducer is a 500 W 8-pin transducer, it has an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and mounts on a 0 to 70 degree transom.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
| General |
|---|
| Transducer frequency | 77/200 kHz |
| Transducer power | 500 W |
| Transducer beamwidth | 45°/15° |
| Transducer maximum depth | 1,900 ft. |
| Transducer cable length | 30 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0°-70° degree transom |
