B&G Zeus SR 12 000-16025-001

£4,060.00

(Inc. 20% VAT)

–

Information

B&G Zeus SR 12 000-16025-001

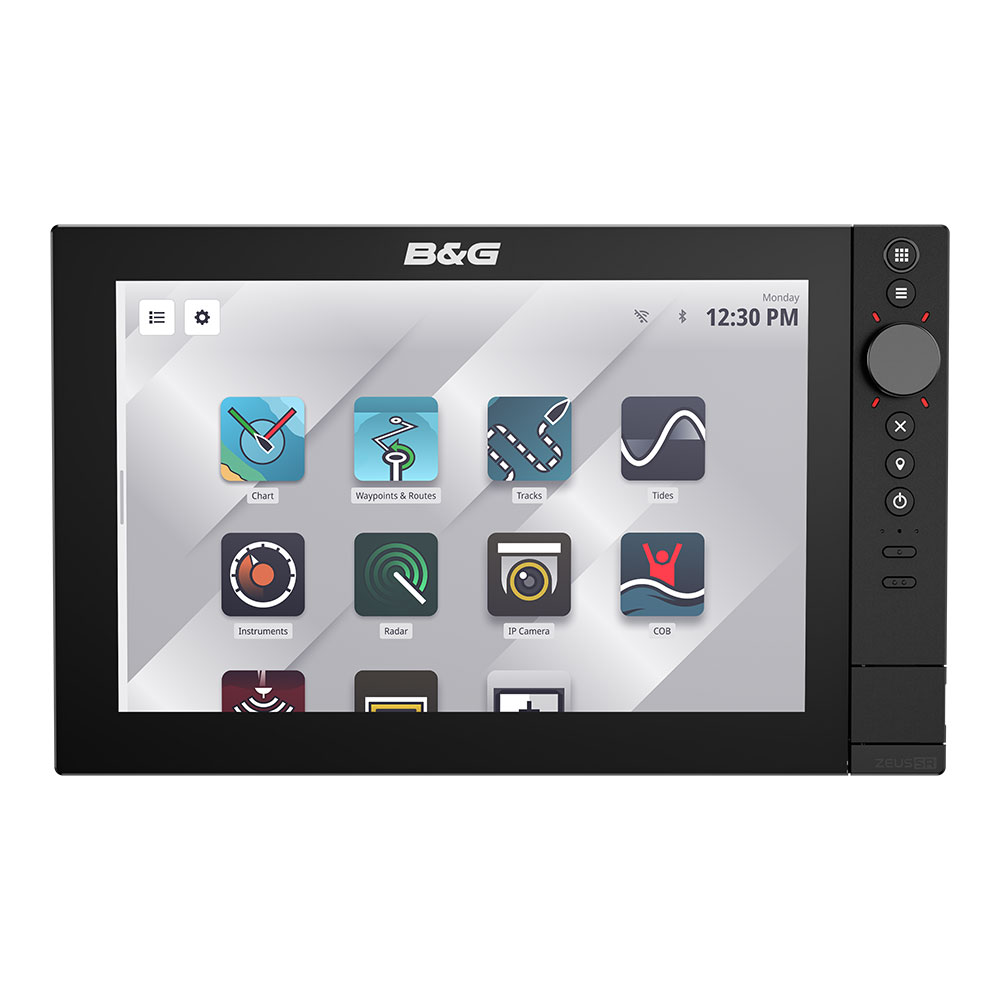

Elevate your instincts with the Zeus SR chartplotter. Powerful 8-core processor delivers a smoother, faster sailing experience. A redesigned interface makes it easier to find the tools you need, with tailored screens for cruising, racing, and anchoring. And a whole host of control options gives full power to the helm in all conditions.

B&G Zeus SR Key Features

High definition SolarMAX IPS touchscreen, viewable from all angles, even with polarised glasses

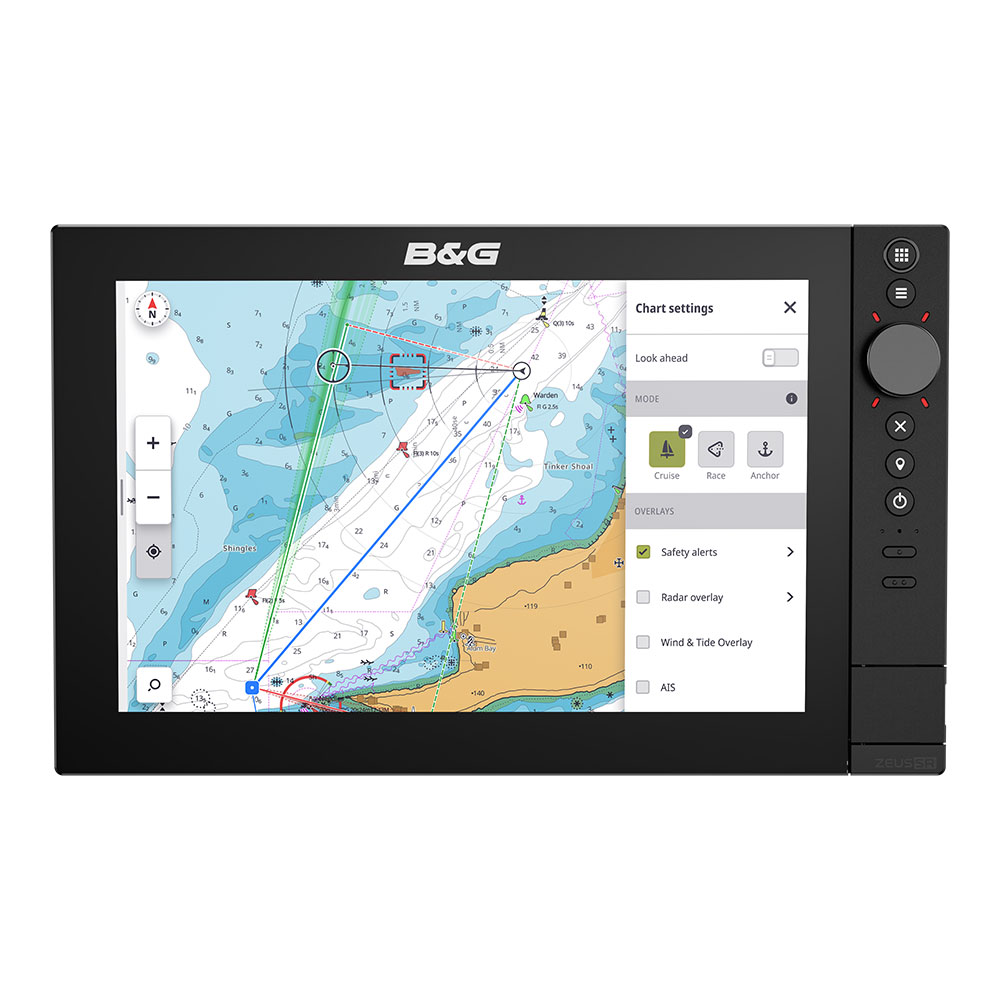

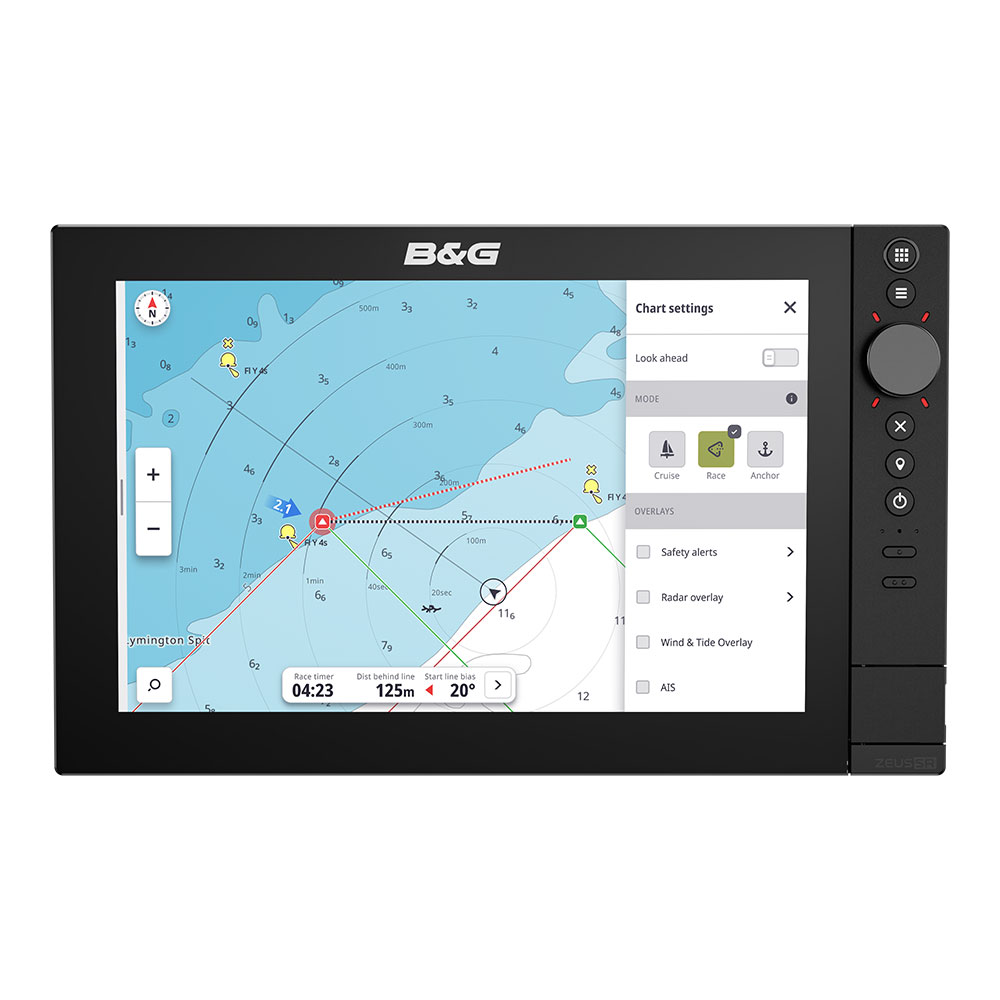

Separate modes for Cruising, Racing and Anchoring
Award-winning sailing features like SailSteer, LayLines, Routes and StartLine
Compatible with C-MAP DISCOVER X and REVEAL X charts
C-MAP-powered Safety Alerts
Full integration with HALO radars, B&G Sailing Processors, Autopilots, Triton2 and Nemesis instruments, wind sensors and more...
B&G App integration with 12 months premium subscription when registering a C-MAP X Chart.
Wi-Fi 5, Gigabit Ethernet & NMEA 2000 networking
Support for up to four IP video cameras
Set-up Wizard to get you up and running quickly.

Next-Gen Charts

C-MAP X-Gen charts deliver the cutting-edge of navigation. Explore the stunning DISCOVER X charts, zooming in and out in an instant. Discover new spots with incredible local detail. And explore after dark with a dedicated night mode. An upgrade to the stunning REVEAL X adds incredible shaded relief and satellite imagery to your arsenal.

Revolutionary Safety Features

The X-Gen charts also unlock a host of ground-breaking features, such as the revolutionary C-MAP® Safety Alerts – built to automatically alert boaters to hazards up ahead, from shallow waters to buoys.

Ground-breaking Chart Management

In an industry first – the X-Chart Manager lets users manage C-MAP chart updates and upgrades directly from the device, with the ability to choose custom areas for a near-instant download. And there are plenty of updates, because X-Gen charts are always evolving, adding new details and features all the time.

Superior Integration

B&G OS has integration at its core, with seamless networking across the entire boat. Connect to HALO radars for superior safety and situational awareness. Unlock next-level performance with Triton Edge and Hercules sailing processors. And bring the very best data to the helm with wind sensors, which feed into range of Triton and Nemesis instruments.

B&G Zeus SR 12 000-16025-001 Specifications

Display

Backlight Colour: White

Display Resolution: 1280 x 800

Display Size: 12 inches

Screen Brightness: >1200 nits

Viewing Angles: 80° top/bottom, 80° left/right

Connectivity

Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used)

Ethernet Ports: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)

Connectivity Wi Fi: Wi-Fi 5 (IEEE 802.11ax)

NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN

PC Connectivity: No

SD Card Storage: 2x (microSD, SDHC)

Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras

Cartography

Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X

Charts Supported: C-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StikeLines (check with provider for available content)

Autopilot

Manouevres Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth

Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Electrical

Power Consumption max: 40 W

Recommended Fuse Rating: 5 A

Supply Voltage: 12/24 V DC (10 - 31.2 V DC min - max)

Environment

Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

Operating Temperature Range: -15°C to 55°C (5°F to 131°F)

Shock Vibration: 100,000 cycles of 20 G

Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)

Waterproofrating: IPX6 and IPX7

GPS

Correction: 10 Hz high speed update (internal)

GPS Receiver Channels: 32 Channels

Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)

Update rate: 10Hz

MFD

AIS: Receive AIS data over NMEA 2000

Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible

Cartography included: World wide basemap (not for navigation). Detailed chart card required

Digital Switching: Czone / DDS

GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS)

Sonar Compatibility: No built-in Echosounder ports. Compaible with Network Sonar modules S3100, S5100, Other MFDs with echosounder ports

Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: Zeus3, Zeus3 GH maximums will apply if on the same network

Physical

Compass Safe: 65 cm (2.1 ft)

Dimensions W x H x D: Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″)
