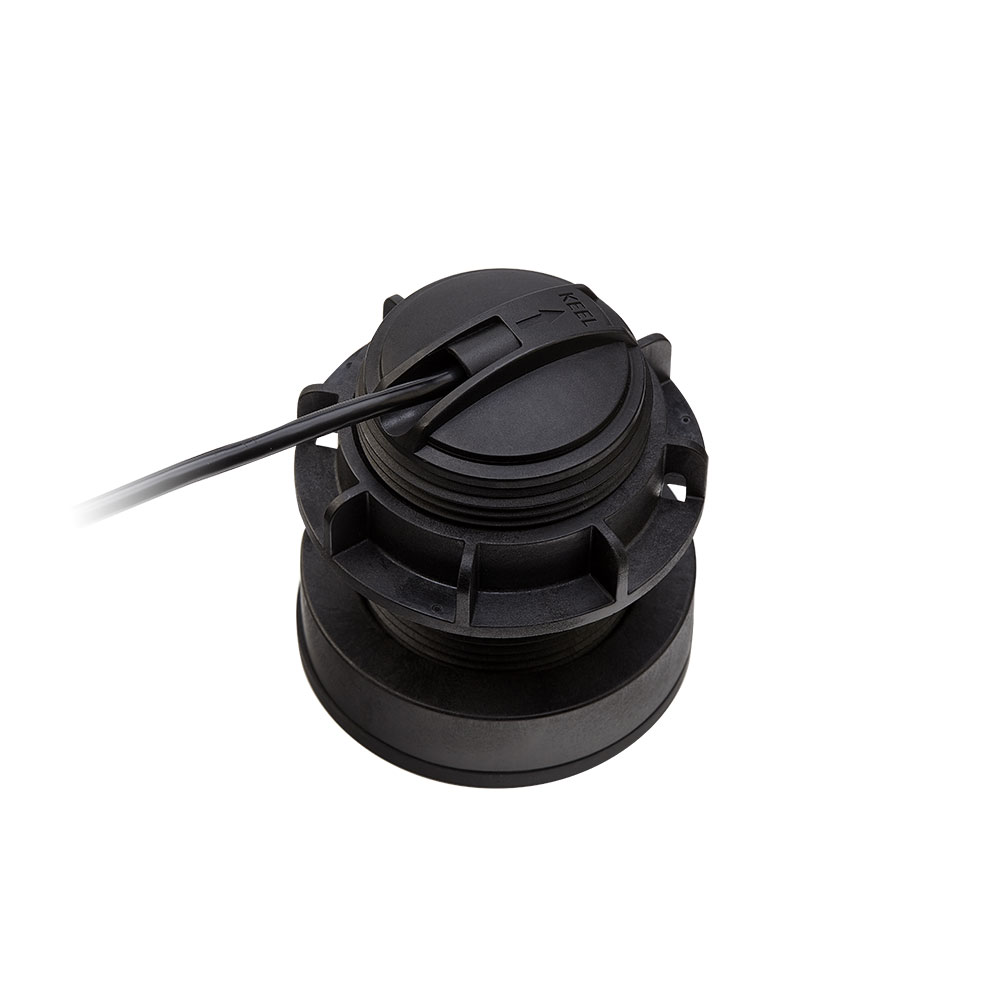

The Raymarine CPT-S family of through hull transducers provides high-resolution sonar imagery and reliable depth recording for Raymarine Element and Axiom chartplotters. The low-profile design eliminates the need for a fairing block while offering excellent high-speed performance. CPT-S through hull transducers are available in bronze or plastic housings.
Key Features and Specifications
- Supports single High CHIRP sonar with a 25° conical beam
- Available with 0°, 12°, and 20° angled elements to compensate for various hull deadrise angles.
- Integrated seawater temperature sensor
- Up to 900 ft (274 m) depth range
- Includes 10 meter cable
CPT-S Chartplotter compatibility
Element S: The CPT-S transducer family connects directly to Element S chartplotters
Axiom Pro S and Axiom 2 Pro S: CPT-S transducers are the recommended transducer for Axiom Pro S and Axiom 2 Pro S chartplotters. Use the A80490 adaptor cable to connect CPT-S transducers to Axiom Pro.
Element HV: Use the A80559 transducer adaptor cable to connect to Element HV models. Please note the CPT-S transducer only supports High CHIRP sonar. HyperVision sonar requires an HV series transducer.
All Axiom Chartplotters with Sonar: CPT-S transducers connect directly to Axiom DV models. All other sonar-equipped Axiom displays can use the A80490 transducer adaptor cable to connect CPT-S transducers. Please note the CPT-S transducer only supports High CHIRP sonar.

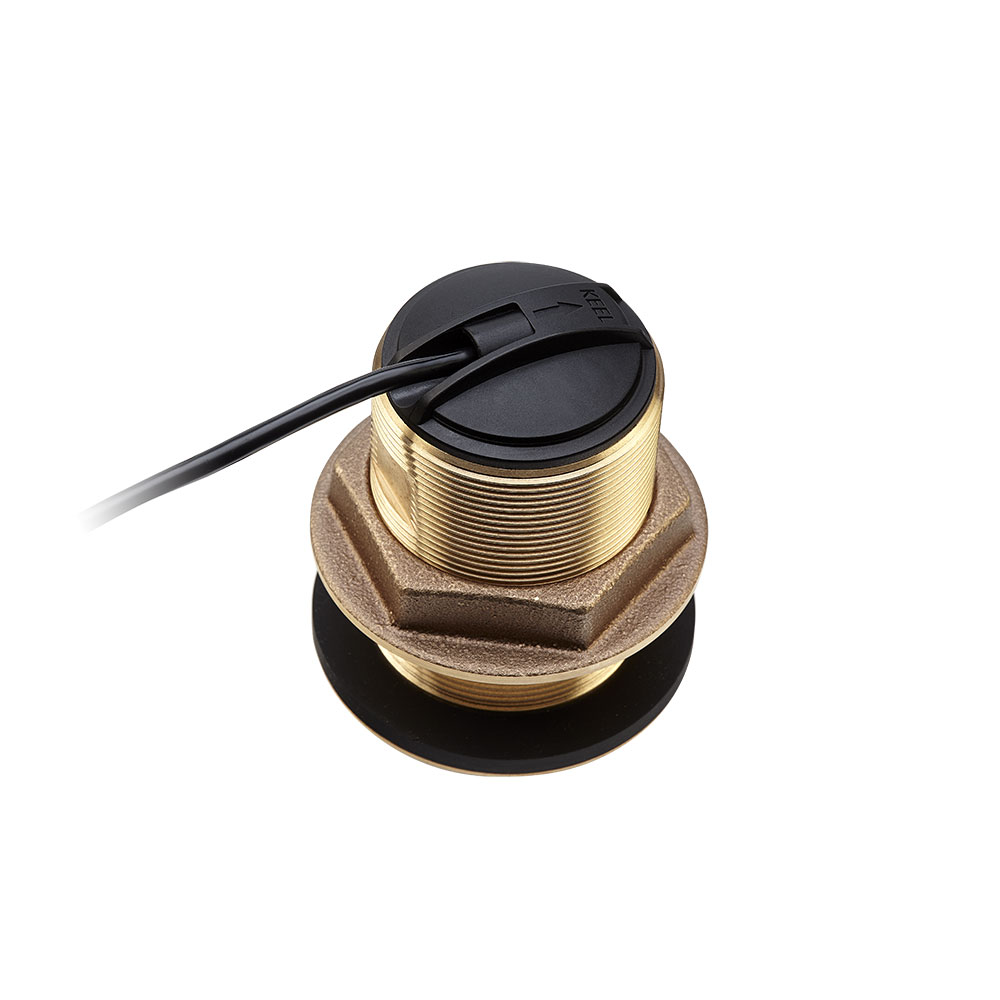

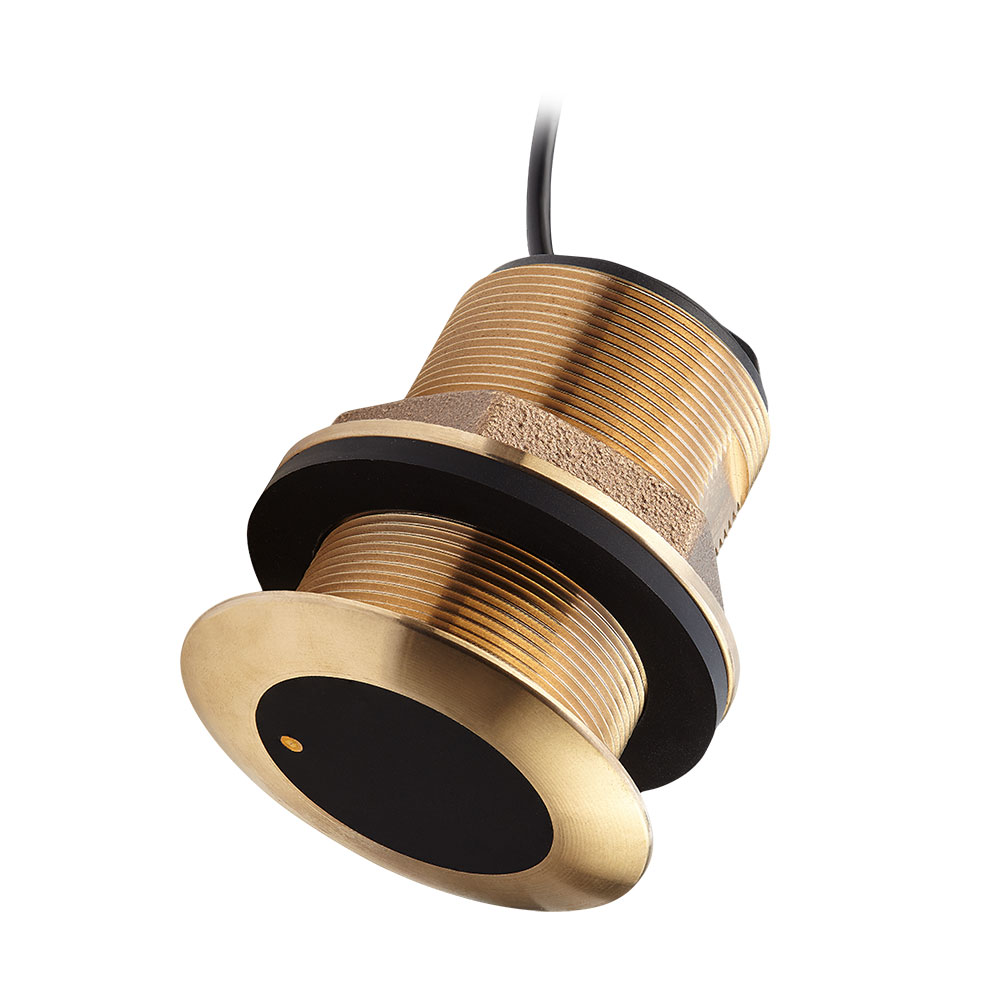

Raymarine CPT-S Bronze thru-hull transducer deadrise angles
| Part number | Description | Suitable hull deadrise angle |
| A80446 | CPT-S Bronze thru–hull 0° angled element CHIRP sonar transducer, with 10 m (32.8 ft) cable. | 0° to 5° |
| E70340 | CPT-S Bronze thru–hull 12° angled element CHIRP sonar transducer, with 10 m (32.8 ft) cable. | 5° to 15° |
| E70341 | CPT-S Bronze thru-hull 20° angled element CHIRP sonar transducer, with 10 m (32.8 ft) cable. | 15° to 25° |
